Kondisioner Kalıbı

Kondisioner yuvası Kalıplar və məişət texnikası kondisioner kalıbı, sənaye mərkəzi kondisioner kalıbı və s. HongMei Kalıp, ön maska ​​birləşmə xəttinin qarşısını almaq üçün qəlib axını analizini çox yaxşı edir. yüksək sürətli dəqiq CNC frezeleme və ciddi keyfiyyətə nəzarət prosesi. Aşağıda HongMei qəlibinin kondisioner kalıbının bəzi xüsusiyyətləri və xüsusiyyətləri aşağıdakılardır:
Kalıp Adı:Kondisioner Kalıbı
Məhsul ölçüsü750x200x200mm
Məhsul təsviri Siemens marka Kondisioner
Kalıp Cavity:1 boşluğu
Kalıbın ölçüsü1100x750x850mm
Uyğun Machine:Dakumar 850T
Kalıp Əsas Material:DIN 1.2738
Kalıp Enjeksiyon Sistemi 2 nöqtə ANOLE pin nöqtəli qapıdır
Kalıp Ejeksiyon Sistemi və püskürən blok
Kalıp dövrü 50 saniyə
Kalıp Running:800K
Çatdırılma müddəti 60 iş günüdür
Kalıp Xüsusiyyətləri yüksək cilalama tələbi, kritik enjeksiyon qəlibləmə prosesi.

Sorğu göndər

Məhsul Təsviri

Product Introduction

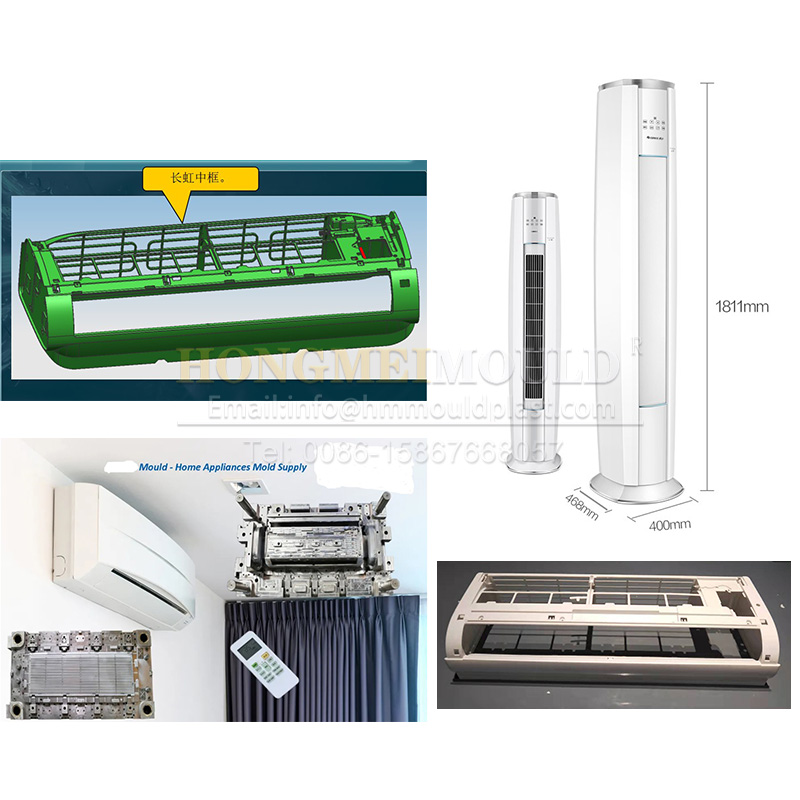

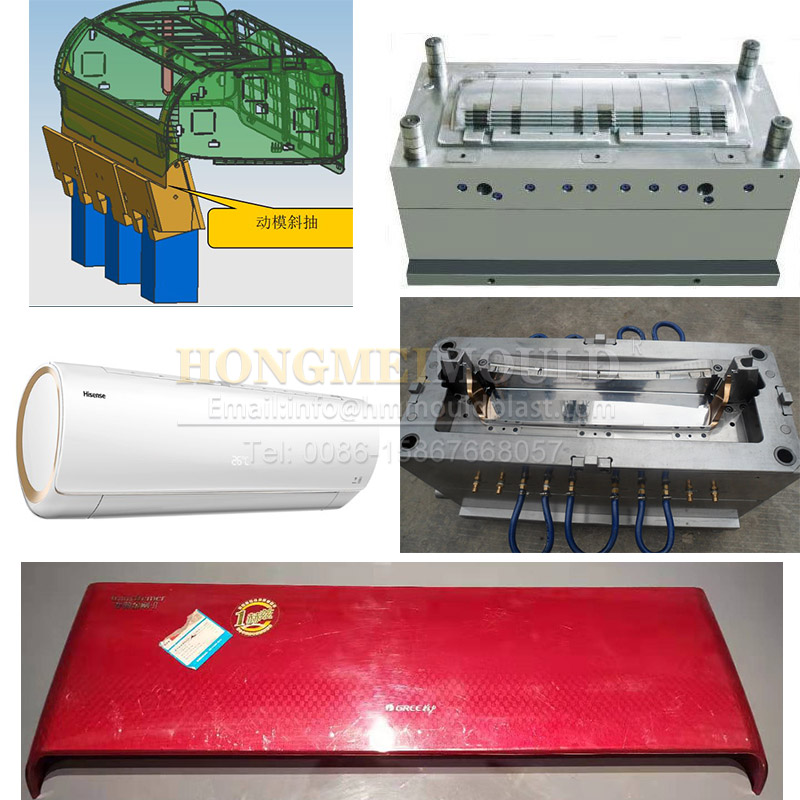

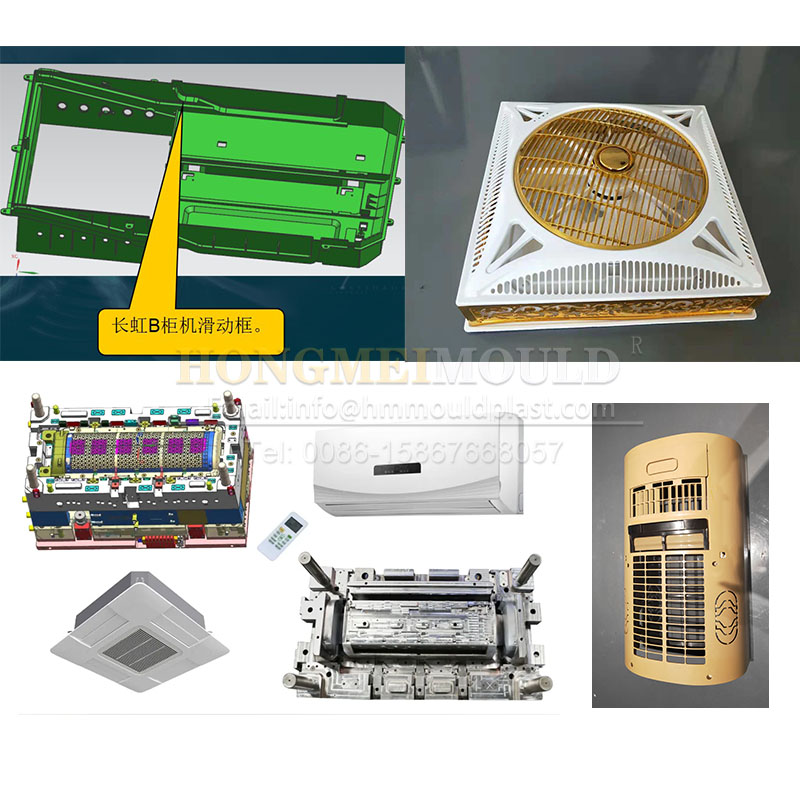

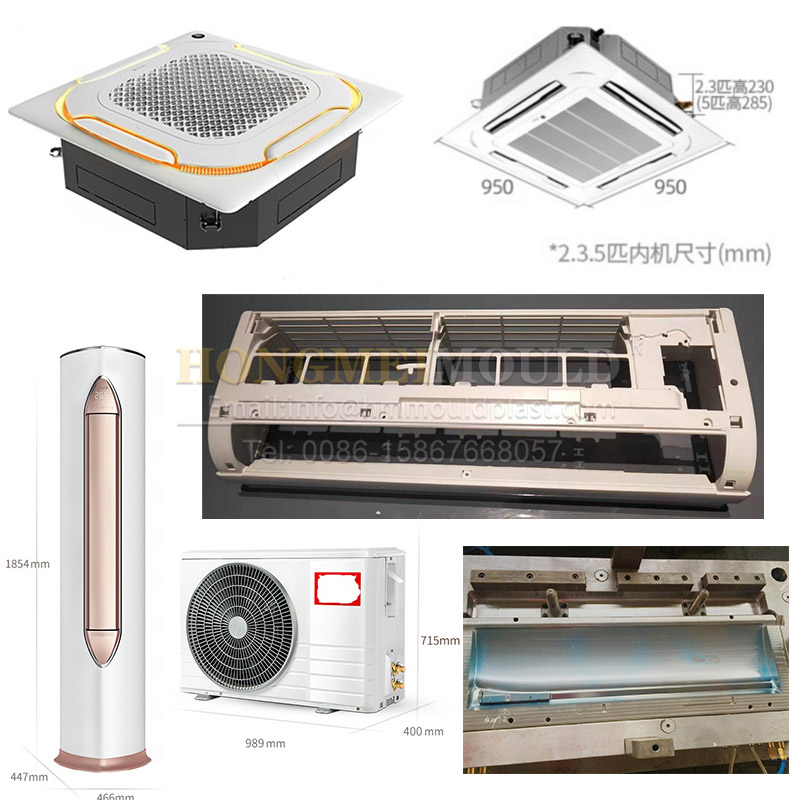

Air conditioner housing Moulds and home appliance air conditioner mould, industrial center air conditioner mould and so on. HongMei Mould make very well mold-flow analyzing to avoid front mask jointing line. high speed precise CNC milling, and rigorous quality controlling processing.Here below are the few features and specifications of HongMei mould's air conditioner mould:

Product Parameter (Specification)

Mould Name

Air Conditioner Mould

Product Size


Product Description

Siemens Brand of Air conditioner

Mould Cavity

1 cavity

Mould Size about


Suitable Machine

Dakumar 850T

Mould Main Material

DIN 1.2738

Mould Injection System

2 points ANOLE pin-point gate

Mould Ejection System

ejector pin and ejecting block

Mould Cycle Time

50 Seconds

Mould Features

high polishing requirement, critical injection molding process.

Mould Running


Delivery Time

60 working days

Product Feature And Application

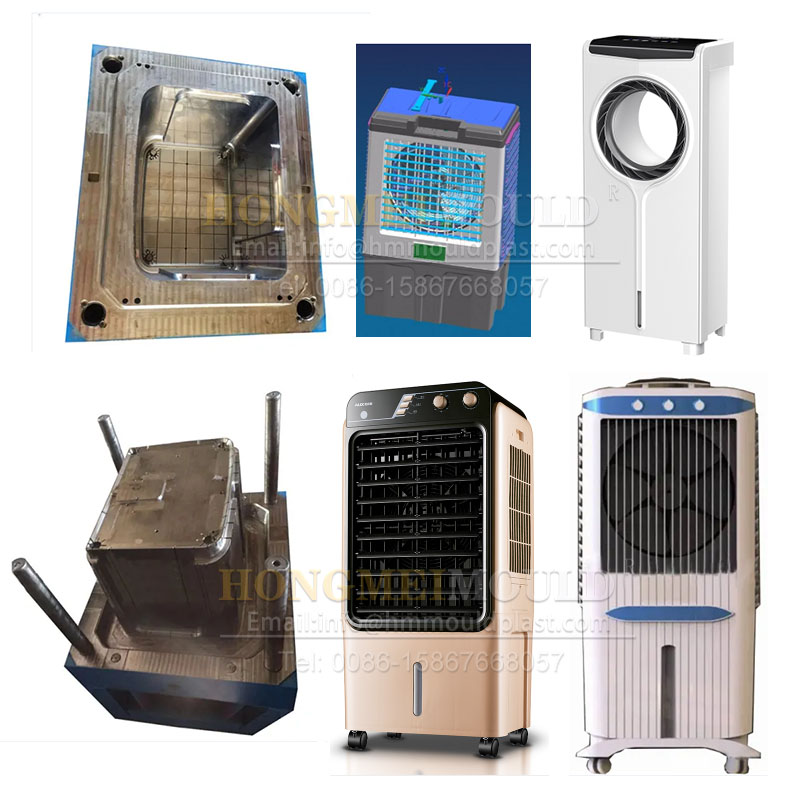

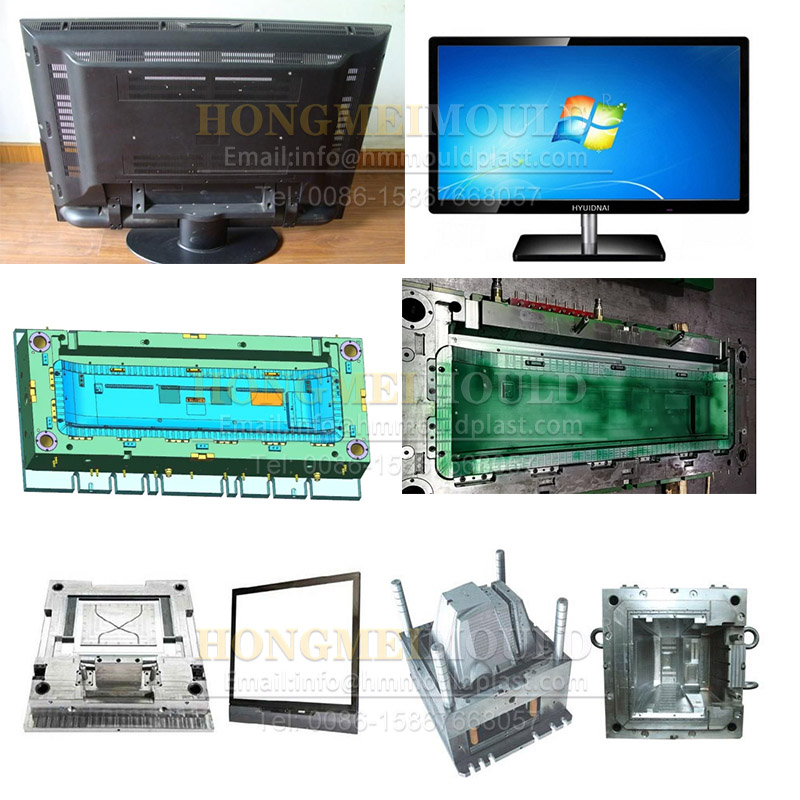

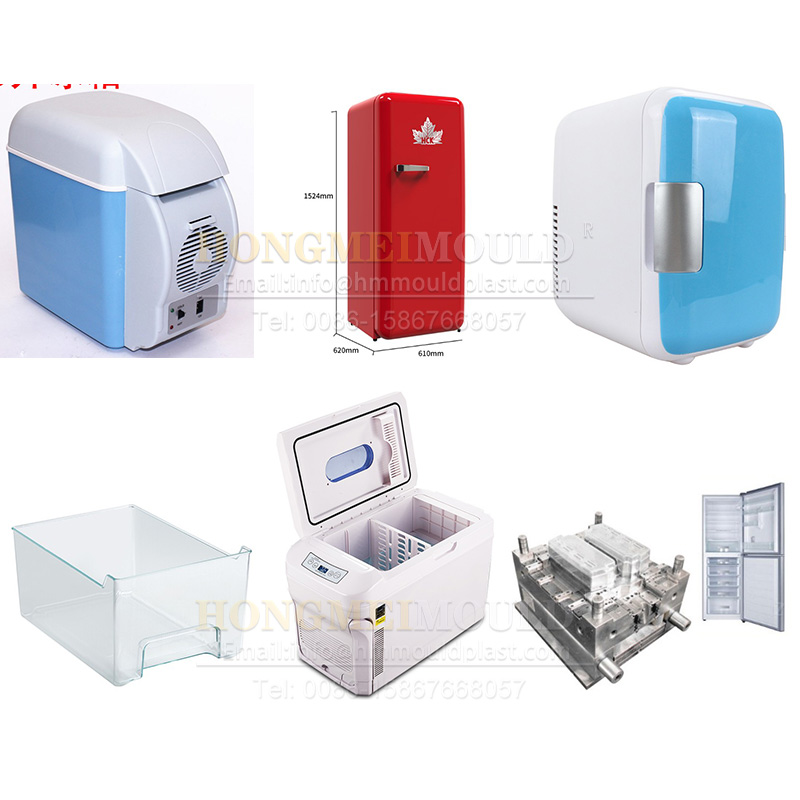

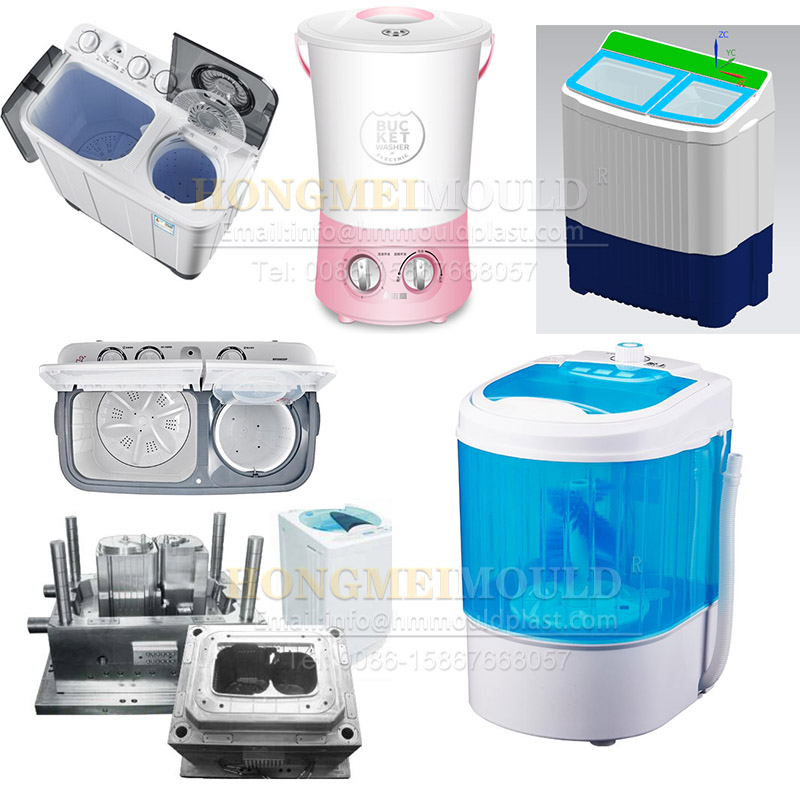

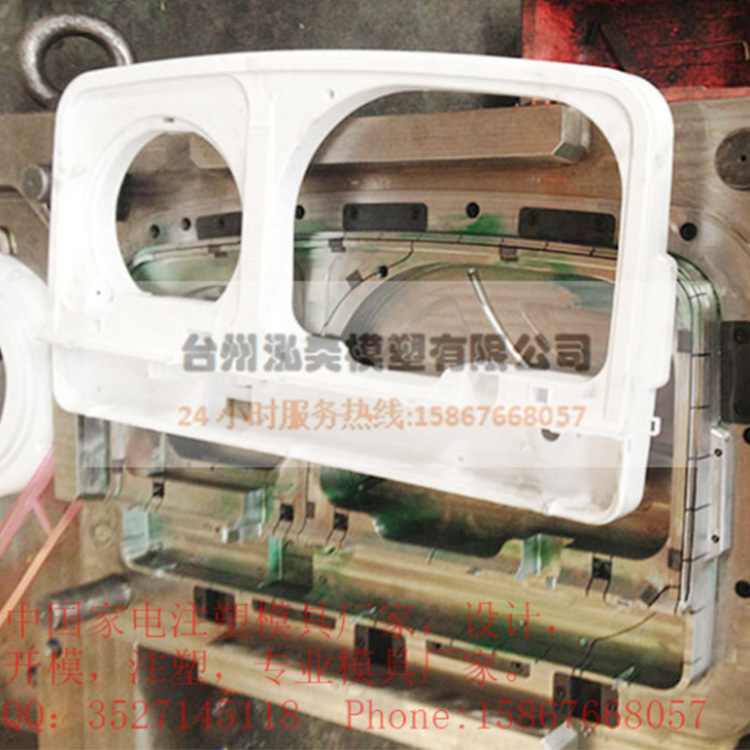

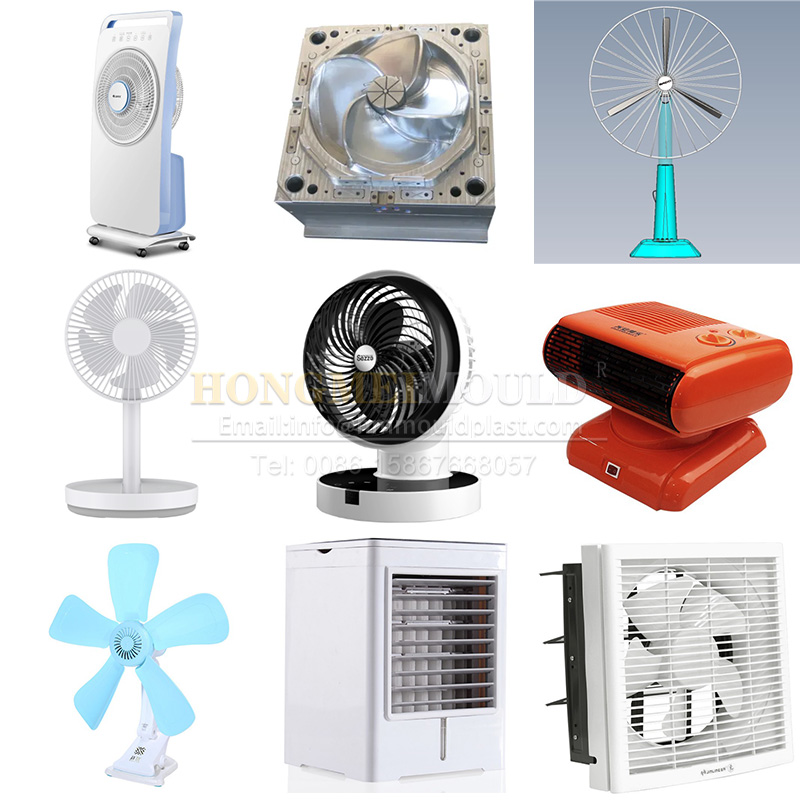

Home Appliance Mould For Air Condition,Air Cooler,Television,Fan,Refrigerator,Washing Machine, Dishwasher,Air purifier,Microware oven Plastic Injection Mold

Hongmeimould design--- China Excellent mould supplier

the core of mold life! Good mold structure design is the premise of a qualified mold manufacturing. Our mold designers and stylists have more than 10 years of professional mold design and manufacturing experience, and can analyze the mold structure and product structure in all aspects (including: mold flow analysis, mold demoulding slope, product surface miniature, gating system design, exhaust system design, cooling system design) The most important and easy problems of these molds will be repeatedly tested during mold structure design.

customized fine mold structure for customers to meet the module requirements of customers

Mould provides knowledge and experience to share and discuss with customers, puts forward technology forward ideas, participates in customer product design, we will timely pass on product structure design, product mold manufacturability, mold drawings and 3D to customers, give customers a direct view, inform customers about product design opinions, mold manufacturing ideas, and shoulder to shoulder with customers to avoid development risks.

Hongmeimould flow analysis--- China Excellent mould supplier

Hong Mei Mould Plastic will provide customer flow analysis, and use simulation software to verify the basic details of filling process, dissolution wiring, deformation and other die design. These characteristics will define the high quality of the die to ensure the accuracy of the initial stage of the project, so as to ensure the success at T1.

Mould Design Center-Project Management--- China Excellent mould supplier

In many stages of project development, project personnel and technical designers discuss design, development and manufacturing in strict accordance with project management methods, in order to provide customers with the most perfect solutions and ensure that the quality of project development exceeds customer requirements.

HongmeiMold maintenance--- China Excellent mould supplier

Mold maintenance is more important than mold maintenance, the more times mold repair, the shorter its life; and the better mold maintenance, the longer its service life. Mold maintenance is mainly divided into three points:

1. Daily maintenance: all kinds of moving parts such as thimble, row position, guide pillar, guide sleeve oil, mold surface cleaning, water drainage, this is the mold production daily maintenance.

2. Regular maintenance: regular maintenance includes cleaning the exhaust groove, adding exhaust gas to the burning black position, and correcting the damaged and worn parts.

3. Appearance maintenance: paint the outside of the die to avoid rusting. When lowering the mold, the fixed and moving mold should be coated with antirust oil. The mold should be closed tightly to prevent dust from entering the cavity.

Maintenance of Mould

Mould maintenance is more important than mould maintenance. The more times the mould is maintained, the shorter its service life. The better the mould is maintained, the longer its service life will be. Mould maintenance mainly consists of three points:

1. Daily maintenance: all kinds of moving parts such as thimble, row position, guide pillar, guide bush refueling, mould surface cleaning, water dredging, which is to be maintained every day during the production of the mould.

2. Periodic Maintenance: Periodic Maintenance includes cleaning the exhaust slot besides routine maintenance, adding exhaust gas to the black position of trapped gas burning, repair of damaged and worn parts, etc.

2. Appearance Maintenance: Paint on the outer side of the embryo to avoid rust. When lowering the mould, the fixed mould should be coated with anti-rust oil. When the mould is preserved, it should be closed tightly to prevent dust from entering the cavity.

HongmeiMoldsteel--- China Excellent mould supplier

Choose mould steel directly determine the length of mold life! According to the module requirements of the products, we select cost-effective mold materials for each customer. On the premise of meeting the product requirements, we can also reduce unnecessary cost waste for customers.

Mold desgin show

what information shall you tell us?

If you have new products need to be designed, kindly tell us your idea:

-what is the product

-the function of the product

-the annually quantity

-any requirement for the product

-send your CAD file (if have)

Mold process mould show

Mould Design Center-Project Management

In many stages of project development, project personnel and technical designers strictly follow the project management method to discuss design, development and manufacturing in order to provide customers with the most perfect scheme and ensure that the quality of project development exceeds customer requirements.

Quality inspection is carried out by quality personnel after parts purchasing, processing and die testing to ensure quality.

The main inspection methods are incoming inspection, on-line inspection, off-line inspection, assembly inspection and T1 inspection.

Mold Test

Deliver,Shipping And Serving

More mold knowledge please consult Ms. Libby ye: 15867668057. Looking forward to your inquiry, we will wholeheartedly provide you with high-quality service, many years of mold development experience, can be customized according to the requirements, focus on mold processing customization, our company will provide a set of detailed mold maintenance and repair reference materials, customers can maintain the mold according to the information. If there are technical problems, please contact us!

Mould Manufacturing Culture and service

HongMei Mould’s mold manufacturing culture is particular. We believes that if we do everything based on RESPONSIBILITY, all thing are well done. Thus, our Mold Manufacturing core culture is responsibility.

Sino Mould has so many important points and all of them must be well done during the mold manufacturing. The action included:

-Inquiry from customer before mold manufacturing.

During this processing, the communicators of both sides should offer the correct information or specification to be sure that the pricing and technical points are meeting buyer's requirements.

-During the Manufacturing, the designer needs to be responsible to make the mold design. This responsibility is to customer and to company too, he has to consider how the customer use this mold, how to design the mold into long life tool, how to design the related components to make it easier tooling during the Mold Manufacturing and higher precision. These considerations only can be done by the responsible person, though Sino Mould has the rigorous QC for the mold design.

-Mold components machining during the Mold Manufacturing.

The machine operators with strong responsibilities, then the mold components can be precise enough to meet the drawings tolerance requirements. Here the responsibilities are indicated by careful steel installation, rigorous machining process following and rigorous dimension controlling during and after the machining. Otherwise, the errors will extend to the next processing. This will cause the terrible delaying on the mold shipment.

-Mold components dimension controlling after the machining. During the Manufacturing, the cavities, cores and other mold components, after the machining, they need serious dimension controlling. CAM team is responsible to be sure that all the dimensions are according with the drawings.

And Mold assembling workshop, mold mass production simulation workshop, all of them they need to be responsible to be sure that the Mold Manufacturing is successful and the delivered mold is top quality according with HongMei Mould standard.

HongMei Mould is a responsible mold manufacturer, this kept Hongmei Mould continues developing, and Sino teams are keeping the biggest responsibilities to customer, considering the customer's willing, doing what customer needs. We responsible for himself, for their family, for their organization and for their community.

Three-coordinate Detection: The product is manufactured, and three-coordinate inspection is adopted to ensure product quality.

Bizimlə əlaqə saxlayın



Wechat: 249994163

Elektron poçt:[email protected]/ [email protected]

Əlaqələndirici şəxs: Xanım Yeliping (Libby) (Baş menecer)

Daha ətraflı məlumat üçün xahiş edirik bizimlə əlaqə saxlayın!

Çox təşəkkür edirəm !


A: HONGMEI PLASTIC KALIP-də təklif üçün hansı növ məlumatlara ehtiyac var?

1, ölçüsü və ya 2D / 3D dizaynı ilə nümunə foto

2, boşluq miqdarı

3, qaçış növü, soyuq və ya isti

4, kalıp polad növü,

P20, 718, 2344, H13, S136,2316, vs.

5, Enjeksiyon maşını parametri və ya boşqab ölçüsü (bağlama çubuğu məsafəsi)

6:3 ~ məhsul qəlib dizaynı üçün 15 gün, depozit ödənişindən və kalıp dizaynından sonra kalıp istehsalı üçün 15 ~ 60gün

7:: Göndərmə növü HONGMEI KALIP

y Hava və ya dənizlə

8: HONGMEI Kalıpında zəmanət

Bir illik zəmanət

9: Plastik qəlib bazası sistemi:

Firmamızın qəlib bazası standartı: LKM, DME, HASCO

Fayl formatını ala bilərik: 2D: DWG /. DXF /. PDF

3D: .igs / .step / .x_ t / .prt /.sldprt./.eprt./easm

Plastik qəlib bazası: DME, hasoco, Futaba, LKM

İsti qaçışçı: kalıp ustası, usta ucu, husky, HASCO, DME, YUDO, INCOE, termoplay

Hidrolik silindr: Parker, Taiyo, Staubli, Jufan

Standart hissələr: DME, HASCO, Misumi, mütərəqqi, Staubli, Daido, LKM

Dermatogliflər: Mold-Tech, ys, Nihon
